Understanding Control Systems

A 12 Minute Read

Introduction

Automation and control systems have become a very big deal. In fact, they are about to become an even bigger deal, since automation will lie at the heart of all future manufacturing. So, let’s take a walk through the basics and look at how automation will affect your business – the stuff you need to know.

Control systems are essential tools for streamlining operations, improving efficiency, and ensuring quality. Whether you run a manufacturing plant, a processing facility, or any other industrial operation, understanding the fundamentals of control systems will allow you to optimize your processes, stay competitive, and, in the end, make more money.

Take the example of any modern office building: The HVAC (Heating, Ventilation, and Air Conditioning) system uses a control system to maintain a comfortable indoor temperature and air quality by adjusting heating, cooling, and ventilation based on sensor readings and predetermined set points.

Well, so it is witty your business. This article is a simple guide to the kinds of automation and control systems that will most likely apply to your needs. It provides an overview of the components, types, and applications of control systems. We’ll explore the key concepts, technologies, and best practices that underlie these systems so that you can make informed decisions and leverage the immense capabilities and potential that automation and control systems could create for your business.

Briefly stated, there is no modern automation – and certainly no future automation – without control systems to guide it. Control systems are what make it possible to monitor, control, and optimize countless processes in countless businesses. As we will see, they do this at the most fundamental level by integrating sensors, actuators, controllers, and communication protocols. And this, in turn, enables precise monitoring and adjustment of the most critical parameters in your process.

If you are new to the world of automation or if you wish to enhance your existing systems, this guide will equip you with the knowledge and insights necessary to understand control systems. The article below will explain the fundamentals for any business owner, production manager, or plant manager.

Our goal is to produce these resources to ensure that your operations run smoothly and efficiently. The benefits will reveal themselves in new levels of productivity, improved quality, a competitive edge for your business, and better financial results.

What is a Control System?

Let me offer first the strict definition. After that, we’ll break it down.

“A control system is any integrated set of components designed to regulate and maintain desired conditions within a process or operation. It includes sensors, actuators, controllers, and communication protocols, working together to monitor and adjust the various parameters based on predefined criteria.”

OK.

Now the definitions of those parts:

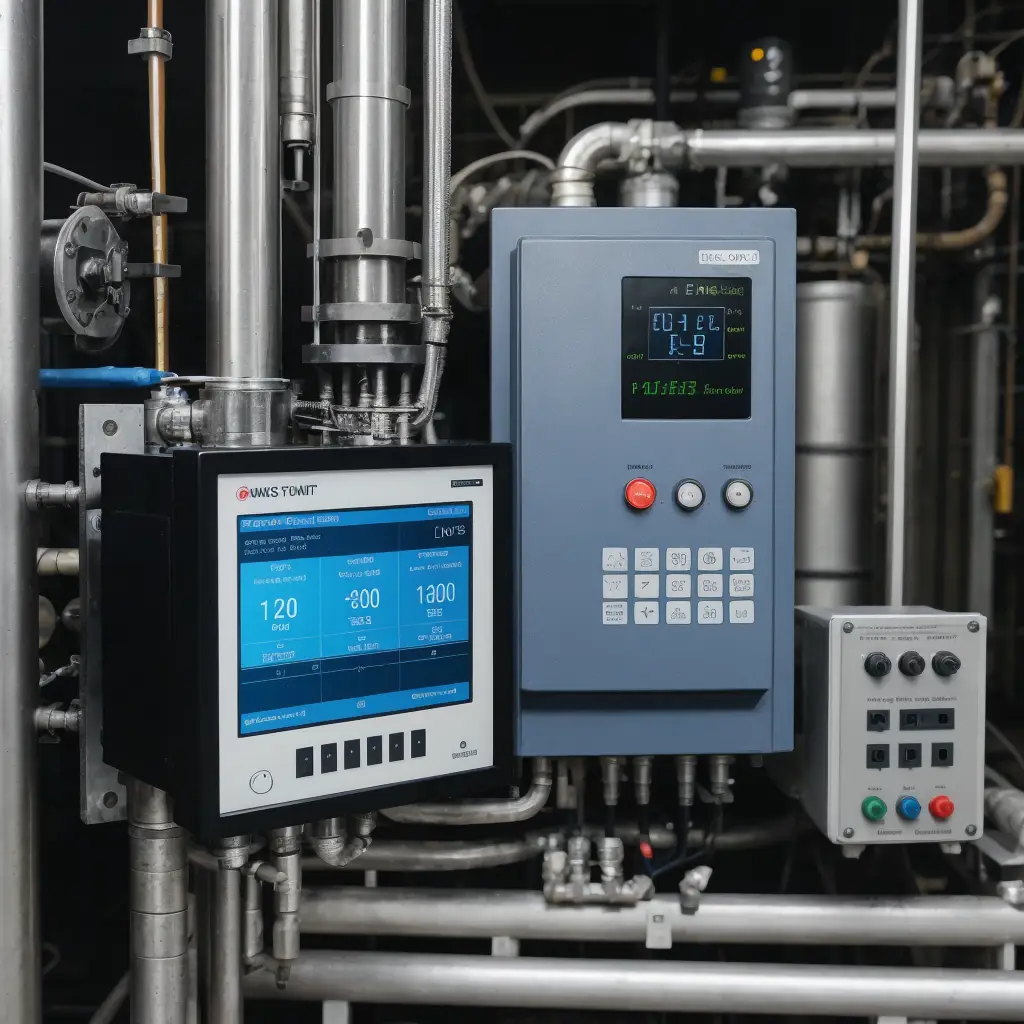

Sensors

Sensors are responsible for gathering data from the process, such as temperature, pressure, flow rate, or other relevant measurements. This data is then transmitted to the controller, which acts as the brain of the system. The controller processes the incoming information and compares it to the desired setpoint or target values.

Controllers

Based on this comparison, the controller determines the necessary adjustments and sends signals to the actuators.

Actuators

Actuators are the components that physically interact with the process, such as valves, motors, or heating elements, to modify the conditions accordingly.

As we will see, control systems can be classified into different types, including manual, automatic, open-loop, and closed-loop systems, each with its own characteristics and applications. But from your perspective, the goal of the control system is simply to ensure consistent performance, product quality, and operational efficiency in manufacturing, energy, transportation, or whatever field you work in.

In manufacturing:

Control systems are widely used in assembly lines, packaging processes, and quality control to maintain precise tolerances and ensure consistent output.

In energy:

Power plants rely on control systems to monitor and adjust fuel flow, steam pressure, and turbine speed, ensuring efficient energy generation and distribution.

In transportation:

Automated control systems are employed in various transportation systems, such as railway signaling, traffic light management, and aircraft autopilot systems, enhancing safety and efficiency.

In pharmaceuticals:

Strict control over temperature, humidity, and other environmental conditions is essential in pharmaceutical manufacturing processes, which control systems help maintain.

So I hope you can see the significance here: With their ability to automate complex processes, improve reliability, and maintain performance, control systems are an integral part of any modern business. In fact, a great deal of the productivity, cost-effectiveness, and competitiveness we see in great businesses comes from using effective control systems. This can definitely apply to yours.

Types of Control Systems

Control systems can be categorized by their mode of operation, feedback mechanisms, and the level of human intervention required. Understanding these categories is essential for selecting the most appropriate system for your application and your particular operational requirements.

1. Manual Control Systems

In manual control systems, human operators monitor and adjust the process parameters based on their observations and experience. These systems rely heavily on the operator’s skills and judgment. Manual control systems are often used in situations where processes are relatively simple, or when a high degree of human oversight is required.

2. Automatic Control Systems

Automatic control systems operate without direct human intervention. They are designed to maintain the desired process conditions automatically, using sensors, controllers, and actuators. These systems can be further classified into open-loop and closed-loop systems.

Open-loop Control Systems:

Open-loop control systems do not incorporate feedback from the process output. The controller operates based on predetermined input values, without adjusting for any deviations or disturbances that may occur during the process. These systems are relatively simple and often used in applications where the process is well-understood and predictable.

Example: An automatic car wash facility utilizes an open-loop control system, where the sequence of operations (such as applying soap, rinsing, and drying) is predetermined and executed without any feedback or adjustments based on the state of the vehicle.

Closed-loop Control Systems:

Closed-loop control systems, also known as feedback control systems, continuously monitor the process output and compare it to the desired setpoint. The controller uses this feedback information to make necessary adjustments to the process inputs, ensuring that the output remains within the desired range. Closed-loop systems are widely used in applications that require precise control and the ability to compensate for external disturbances or variations in process conditions.

Each type of control system has its own advantages and disadvantages, and the choice depends on factors such as:

• The complexity of the process
• The degree of precision required
• The need for flexibility and adaptability
• The overall operational requirements of the application

Manual control systems offer a high degree of human oversight and flexibility but can be labor-intensive and prone to human error. Open-loop control systems are simple and cost-effective but may struggle to adapt to changing conditions or disturbances. Closed-loop control systems provide superior precision and the ability to compensate for variations, but they can be more complex and expensive to implement.

By understanding the strengths and limitations of each type of control system, businesses can make informed decisions and select the most appropriate solution to meet their specific automation and control needs, ultimately enhancing operational efficiency, product quality, and overall competitiveness.

Control System Components

Let’s see now how the components of a control system work together to achieve the control objectives. These components include sensors, actuators, controllers, power supplies, and communication protocols. Understanding the roles and types of these components is essential for designing and implementing effective control systems.

The sensors

The sensors measure and monitor the process parameters (like temperature, pressure, flow rate, level, or position). They convert physical quantities into electrical signals that can be processed by the control system. There are categories we need to know about:

1. Analog Sensors: These sensors produce a continuous electrical signal that varies proportionally with the measured quantity. Examples include thermocouples, strain gauges, and potentiometers.


2. Digital Sensors: These sensors provide a discrete output signal, often in the form of digital data or pulses. Examples include proximity sensors, encoders, and level switches.


The actuators

The actuators are responsible for physically manipulating the process based on the control signals received from the controller. They convert electrical or pneumatic signals into mechanical motion or other physical actions. Actuators can also be classified as analog or digital:

1. Analog Actuators: These actuators can assume a range of positions or output levels, such as control valves, variable speed drives, or servo motors.

2. Digital Actuators: These actuators have two discrete states, such as on/off or open/closed. Examples include relays, solenoid valves, and motor starters.


The controllers

The controllers make the decisions in the system. They receive input signals from sensors, process them according to predetermined algorithms or logic, and generate output signals to control the actuators. Controllers can range from simple logic circuits to complex programmable logic controllers (PLCs) or industrial computers.

Power supplies

Power supplies provide the electrical energy to operate the components. They may include batteries, uninterruptible power supplies (UPS), or power converters, depending on the system requirements.

Communication protocols

Communication protocols enable the exchange of data and control signals between the different components of the control system. These protocols can be wired (e.g., Ethernet, Modbus, Profibus) or wireless (e.g., Wi-Fi, Bluetooth, ZigBee), and they ensure reliable and efficient communication within the control system.

The selection and integration of these components are crucial for creating a robust and effective control system. Factors such as the process requirements, environmental conditions, safety considerations, and cost constraints play a significant role in determining the appropriate components and their specifications.

By understanding the roles and types of control system components, you can design and implement tailored solutions that meet your automation and control needs.

How to design and implement a control system

Designing and implementing an effective control system requires planning. Amongst other things, you have to factor in industry best practices. So, in this section we will outline the steps involved in the design and implementation of control systems.

Step #1: Identify your system and your safety considerations

• Clarify the process or system to be controlled, including its inputs, outputs, and desired performance criteria.
• Identify any hazards or safety concerns with the process. Incorporate safeguards and fail-safe mechanisms into the control system design.
• Conduct a risk assessment to mitigate risks to personnel, equipment, and the environment.


Step #2: Specify and select the control device

• Select appropriate sensors, actuators, controllers, and communication protocols based on the process requirements, environmental conditions, and performance criteria.
• Consider factors such as accuracy, response time, reliability, and compatibility when specifying control devices.
• Evaluate the need for redundancy or backup systems to ensure continuous operation and minimize downtime.

Step #3: Design and construct your control system

Control System Design and Construction:

• Develop a detailed control system architecture, including the layout of components, wiring diagrams, and communication networks.
• Design the control algorithms and logic sequences that will govern the system’s behavior and decision-making processes.
• Implement appropriate software or programming to configure the controllers and integrate the various components.
• Construct the control system hardware, including mounting and wiring of components, following industry standards and best practices.


Step #4: Install and commission your control system

• Install the control system components at the desired location, following proper installation procedures and adhering to safety protocols.
• Perform comprehensive testing and commissioning to verify the system’s functionality, calibrate sensors and actuators, and ensure proper integration with existing infrastructure.
• Develop and document operating procedures, maintenance schedules, and troubleshooting guidelines for the control system.
• Provide training and support to operators and maintenance personnel to ensure proper system operation and maintenance.


Throughout the design and implementation, it is essential to involve stakeholders, subject matter experts, and relevant regulatory bodies to ensure compliance with the standards, the codes, and the regulations that apply. Additionally, documentation and record-keeping are crucial for future reference, troubleshooting, and system modifications.

Effective control system design and implementation require a systematic approach. We recommend that you pay  attention to detail and adhere to industry best practices. By doing that,  businesses should ensure the successful integration of control systems into their operations. That’s when you start to see improvements in process control and all of the other benefits.

Control System Maintenance and Troubleshooting

Proper maintenance and timely troubleshooting are essential for reliable efficient operation of control systems over time – over their lifetime, in fact. It’s advisable to do the things that prevent unexpected downtime while they also enhance system performance. Lots of other details come into play, like extending component life and maintaining regulatory compliance – so, let’s look at those.

1. Maintain the system:
   • Regular maintenance helps identify problems before they escalate into major failures, reducing the risk of costly repairs or replacements.
   • Preventive maintenance activities, such as calibrating sensors, inspecting wiring, and cleaning components, improve system accuracy and reliability.
   • Adherence to manufacturer-recommended maintenance schedules and procedures can help maximize the lifespan of control system components.


2. Common Issues and Troubleshooting Techniques:
   • Sensor issues: Sensor drift, calibration errors, or physical damage can lead to inaccurate readings and improper system behavior. Troubleshooting may involve recalibration or replacement.
   • Actuator problems: Stuck or faulty actuators can prevent the system from executing the desired actions. Troubleshooting may involve cleaning, lubricating, or replacing actuator components.
   • Communication failures: Disruptions in communication networks can cause data loss or delayed responses. Troubleshooting may involve checking cables, connectors, and network settings.
   • Software bugs or configuration errors: Incorrect programming or configuration can lead to erratic system behavior. Troubleshooting may involve software updates, logic modifications, or parameter adjustments.


3. Role of System Integrators:
   • System integrators are specialized companies or service providers that offer expertise in control system installation, maintenance, and troubleshooting.
   • They often possess in-depth knowledge of specific control system platforms, components, and applications, enabling them to provide efficient and effective support.
   • System integrators can assist with routine maintenance, emergency repairs, system upgrades, and training for in-house personnel.


4. Preventive and Predictive Maintenance Strategies:
   • Preventive maintenance involves scheduled inspections, cleaning, and replacements to prevent failures before they occur.
   • Predictive maintenance uses condition monitoring techniques, such as vibration analysis or thermal imaging, to detect potential issues before they manifest.
   • These strategies can help minimize unplanned downtime, extend equipment life, and optimize maintenance resources.


Effective maintenance and troubleshooting strategies require a combination of skilled personnel, appropriate tools and diagnostic equipment, and well-documented procedures. Additionally, keeping accurate records of maintenance activities, system modifications, and troubleshooting efforts can aid in identifying recurring issues and implementing long-term solutions.

By prioritizing control system maintenance and troubleshooting, businesses can ensure the reliable and efficient operation of their automation systems, minimize downtime, and maximize their return on investment in control technology.

The Problem with Most Control Systems:

Complexity

While control systems have revolutionized various industries by enabling precise monitoring, control, and optimization of critical processes, they often suffer from a significant drawback: complexity. The intricate nature of many control systems, with their interconnected components, specialized programming, and intricate configurations, can pose substantial challenges.

Complexity in control systems can manifest in several ways:

1. System Architecture: Modern control systems frequently involve a multitude of sensors, actuators, controllers, and communication protocols, all intricately interconnected. As the number of components and their interdependencies increase, so does the overall complexity of the system.

2. Programming and Configuration: Configuring and programming control systems often requires specialized knowledge and expertise. Complex control algorithms, extensive parameter settings, and intricate logic sequences can make system configuration a daunting task, even for experienced professionals.

3. Integration and Interoperability: Control systems rarely operate in isolation; they must seamlessly integrate with other systems, such as enterprise resource planning (ERP), manufacturing execution systems (MES), and supervisory control and data acquisition (SCADA) systems. Ensuring interoperability and data exchange between these disparate systems can add another layer of complexity.

4. Maintenance and Troubleshooting: As control systems become more complex, identifying and resolving issues can become increasingly challenging. Diagnosing faults, tracing root causes, and implementing effective solutions often require in-depth knowledge and specialized tools, making maintenance and troubleshooting tasks time-consuming and resource-intensive.


The high level of complexity in many control systems can lead to various challenges, including:

1. Increased training and skill requirements for operators and technicians, resulting in higher operational costs.

2. Longer system implementation and commissioning times, delaying time-to-market and return on investment.

3. Higher risk of human errors, which can potentially lead to system failures, downtime, or safety hazards.

4. Difficulty in adapting and scaling systems to meet changing requirements or accommodate new technologies.


To address these challenges, the world needs a simpler approach to control systems – one that prioritizes ease of use, intuitive interfaces, and seamless integration without compromising functionality or performance. Simplified control systems could potentially reduce training costs, minimize human errors, and accelerate implementation timelines, ultimately leading to increased efficiency, productivity, and competitiveness across various industries.

Well, all of this describes precisely why we founded Van Burick Technology and why we’re building the VB Tech Control Box.

Our experience

Over and again in our experience, we see that the right control systems can provide a significant competitive advantage for small businesses. Throughout this guide, therefore, we have explored the fundamental concepts, components, and applications of control systems, highlighting their vital role in ensuring efficient and reliable operations across various industries.

Control systems are the backbone of modern automation, enabling businesses to monitor, control, and optimize critical processes with precision and accuracy. By integrating sensors, actuators, controllers, and communication protocols, these systems facilitate real-time monitoring, data-driven decision-making, and precise adjustments to achieve desired outcomes.

From manual control systems that rely on human operators to highly sophisticated closed-loop systems that autonomously maintain process parameters, the range of options available allows businesses to select the most appropriate solution based on their specific requirements and operational constraints.

Effective control system design and implementation require a systematic approach, involving careful system identification, component selection, system construction, and thorough testing and commissioning. Adherence to industry best practices, safety considerations, and regulatory compliance is paramount throughout this process.

Moreover, proper maintenance and timely troubleshooting are crucial for ensuring the long-term reliability and optimal performance of control systems. Regular maintenance activities, predictive maintenance strategies, and the involvement of skilled system integrators can help identify and address potential issues before they escalate, minimizing downtime and maximizing the return on investment.

As businesses continue to strive for increased efficiency, improved product quality, and a competitive edge, the understanding and effective implementation of control systems will remain a critical success factor. By embracing the principles and best practices outlined in this guide, businesses can leverage the power of automation and control systems to drive operational excellence, foster innovation, and achieve sustainable growth in an ever-evolving market.

Manufacturing case study:

Precision control in automotive engine assembly

In the automotive industry, precision and consistency are paramount for engine assembly. The slightest deviations can impact engine performance, fuel efficiency, and emissions. Manufacturers of high-performance engines therefore implement sophisticated control systems to ensure accurate and repeatable assembly processes.

The engine assembly line

Engine assembly lines typically consist of multiple stations. Each one is responsible for a specific task, such as cylinder block machining, crankshaft installation, valve train assembly, or final inspection. Precision is critical at every step to ensure proper alignment and clearances between the various components.

Sensor integration

At each station, a variety of sensors are strategically placed to monitor critical parameters and provide feedback to the control system. For example, laser micrometers measure the precise dimensions of machined components, while vision systems inspect for defects or misalignments. Torque sensors ensure proper tightening of bolts and fasteners during assembly.

Closed-loop position control

The control system employs closed-loop position control to ensure accurate and repeatable movements during assembly operations. Servomotors, coupled with high-resolution encoders, precisely position and orient components during installation. The feedback from the encoders allows the control system to make real-time adjustments, compensating for any deviations or variations.

Force and pressure monitoring

Certain assembly operations, such as bearing installation or gasket seating, require precise force or pressure control. Load cells and pressure sensors provide real-time feedback to the control system, enabling precise adjustments of the applied force or pressure to prevent damage or improper seating.

Statistical Process Control (SPC)

These control systems typically incorporate SPC techniques to monitor assembly process data. By tracking key quality characteristics, such as dimensional measurements or torque values, the system can identify trends or deviations that may indicate potential issues. This allows for proactive maintenance, adjustments, or corrective actions to be taken, minimizing the risk of defects or quality issues.

Data integration and traceability

The control systems integrate ERP and quality management systems. This enables end-to-end traceability, allowing for detailed record-keeping of each engine’s assembly history, including component serial numbers, process parameters, and quality data. In the event of a quality issue or recall, this traceability facilitates rapid identification and targeted corrective actions.

Benefits and Outcomes:

By implementing this advanced control system for engine assembly, ABC Automotive has achieved the following benefits:

1. Consistent Quality: The precise control and monitoring capabilities of the system ensure that every engine meets stringent quality standards, minimizing variations and defects.


2. Increased Efficiency: Automated processes and real-time adjustments reduce the need for manual interventions and rework, resulting in higher throughput and productivity.


3. Improved Reliability and Durability: The accurate assembly of components with precise fitment and alignments contributes to improved engine reliability and extended service life.


4. Reduced Warranty Claims and Recalls: The high level of quality control and traceability minimizes the risk of defects, reducing warranty claims and the potential for costly recalls.


5. Continuous Improvement: The wealth of process data collected by the control system enables ABC Automotive to identify opportunities for process optimization and continuous improvement.


6. By prioritizing precision control in engine assembly, ABC Automotive has solidified its reputation for producing high-quality, high-performance engines, giving them a competitive edge in the demanding automotive market.
